Jalchar

Unmanned Surface Vehicle

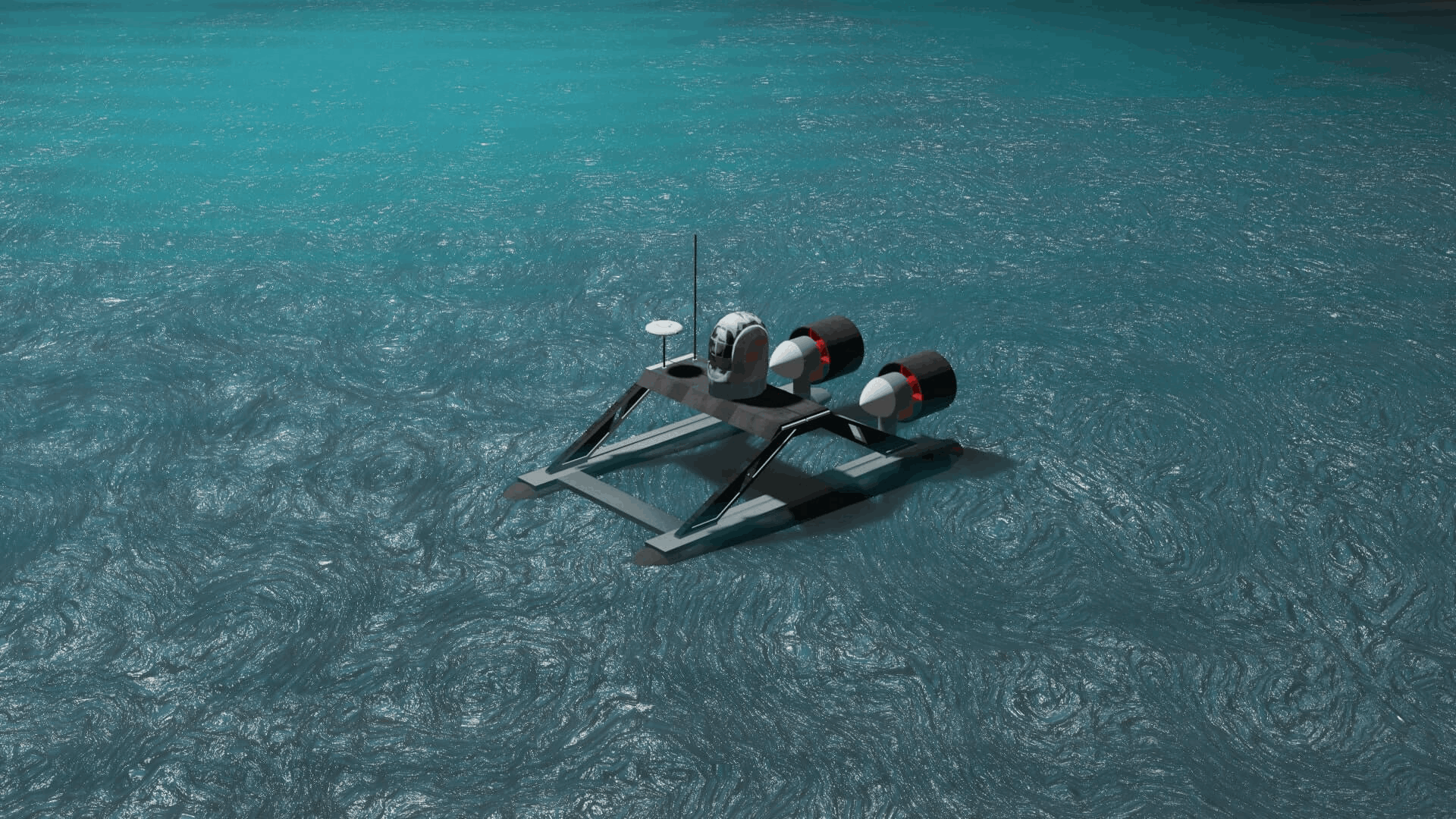

Jalchar  is Unmanned (Water) Surface Vehicle (USV) or Drone Boat designed by Dronobotics to assist Navy, Coast Guards, Disaster Management, Search & Rescue, Scientific Researches and Commercial & Personal needs.
Jalchar is a force multiplier for Maritime Operations. Rather than be constrained by traditional warfare areas and security methods, Jalchar  can be employed in various scenarios to do the dangerous, dull and dirty work with greater efficiency. The manned operations such as border surveillance can be done by Jalchar with greater persistence and lower cost as copmared to traditional methods.

 It`s 24 MP camera provides live FPV stream @720p and stores at 1080p. Dronobotic`s Pan-Tilt multipurpose platform can be mounted on it, which can be equiped with custom payloads, remotely controlled by operator via secure data links.

Jalchar

Technical Specifications

Dronobotics Jalchar USV- Unmanned Water Surface Vehicle

10

Km Range

3

Hours Endurance

15

Knots Cruise Speed

2

Kg Useful Payload

Dimension (cm)

200x110x80

Range

10 km

Max Speed

25 Knots

Battery Life (@1.5 m/s)

3 hours

Autonomous Accuracy

< 1 m

Obstacle Avoidance

10 m

Payloads

Day Cam:  1080p, 10x Optical Zoom



Night Cam: 720p, 10x Optical Zoom



2 Kg of Useful Payload



Multiple Sensors (Add-on)



Salient Features

Rapid Deployment



Autonomous & Manual



Portable



Optional Solar Power For Extended Operation



Multiple Failsafe Modes



HD FPV Live Feed



Multiple Payload Options



Operable in Winds @ 24 km/h
